Private workforces for Amazon SageMaker Ground Truth and Amazon Augmented AI (Amazon A2I) help organizations build proprietary, high-quality datasets while keeping high standards of security and privacy.

The AWS Management Console provides a fast and intuitive way to create a private workforce, but many organizations need to automate their infrastructure deployment through infrastructure as code (IaC) because it provides benefits such as automated and consistent deployments, increased operational efficiency, and reduced chances of human errors or misconfigurations.

However, creating a private workforce with IaC is not a straightforward task because of some complex technical dependencies between services during the initial creation.

In this post, we present a complete solution for programmatically creating private workforces on Amazon SageMaker AI using the AWS Cloud Development Kit (AWS CDK), including the setup of a dedicated, fully configured Amazon Cognito user pool. The accompanying GitHub repository provides a customizable AWS CDK example that shows how to create and manage a private workforce, paired with a dedicated Amazon Cognito user pool, and how to integrate the necessary Amazon Cognito configurations.

Solution overview

This solution demonstrates how to create a private workforce and a coupled Amazon Cognito user pool and its dependent resources. The goal is to provide a comprehensive setup for the base infrastructure to enable machine learning (ML) labeling tasks.

The key technical challenge in this solution is the mutual dependency between the Amazon Cognito resources and the private workforce.

Specifically, the creation of the user pool app client requires certain parameters, such as the callback URL, which is only available after the private workforce is created. However, the private workforce creation itself needs the app client to be already present. This mutual dependency makes it challenging to set up the infrastructure in a straightforward manner.

Additionally, the user pool domain name must remain consistent across deployments, because it can’t be easily changed after the initial creation and inconsistency in the name can lead to deployment errors.

To address these challenges, the solution uses several AWS CDK constructs, including AWS CloudFormation custom resources. This custom approach allows the orchestration of the user pool and SageMaker private workforce creation, to correctly configure the resources and manage their interdependencies.

The solution architecture is composed of one stack with several resources and services, some of which are needed only for the initial setup of the private workforce, and some that are used by the private workforce workers when logging in to complete a labeling task. The following diagram illustrates this architecture.

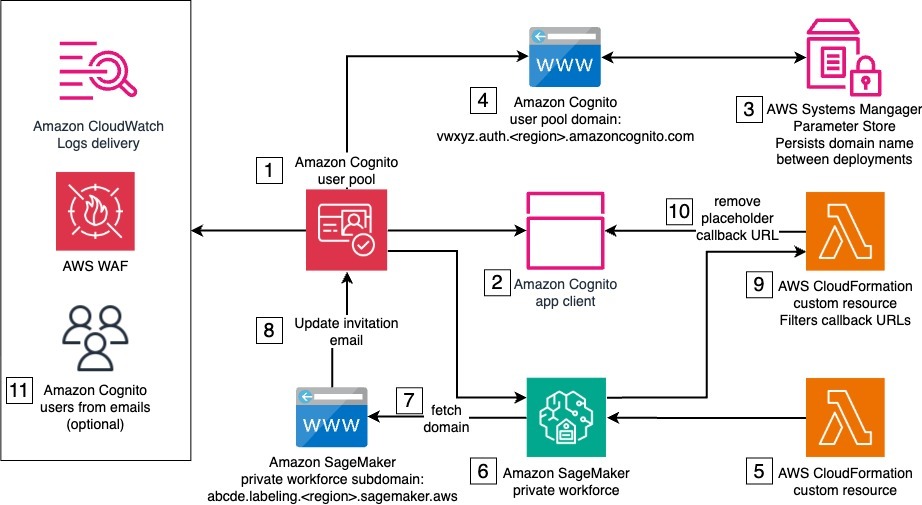

The solution’s deployment requires AWS services and resources that work together to set up the private workforce. The numbers in the diagram reflect the stack components that support the stack creation, which occur in the following order:

Amazon Cognito user pool – The user pool provides user management and authentication for the SageMaker private workforce. It handles user registration, login, and password management. A default email invitation is initially set to onboard new users to the private workforce. The user pool is both associated with an AWS WAF firewall and configured to deliver user activity logs to Amazon CloudWatch for enhanced security.
Amazon Cognito user pool app client – The user pool app client configures the client application that will interact with the user pool. During the initial deployment, a temporary placeholder callback URL is used, because the actual callback URL can only be determined later in the process.
AWS Systems Manager Parameter Store – Parameter Store, a capability of AWS Systems Manager, stores and persists the prefix of the user pool domain across deployments in a string parameter. The provided prefix must be such that the resulting domain is globally unique.
Amazon Cognito user pool domain – The user pool domain defines the domain name for the managed login experience provided by the user pool. This domain name must remain consistent across deployments, because it can’t be easily changed after the initial creation.
IAM roles – AWS Identity and Access Management (IAM) roles for CloudFormation custom resources include permissions to make AWS SDK calls to create the private workforce and other API calls during the next steps.
Private workforce – Implemented using a custom resource backing the CreateWorkforce API call, the private workforce is the foundation to manage labeling activities. It creates the labeling portal and manages portal-level access controls, including authentication through the integrated user pool. Upon creation, the labeling portal URL is made available to be used as a callback URL by the Amazon Cognito app client. The connected Amazon Cognito app client is automatically updated with the new callback URL.
SDK call to fetch the labeling portal domain – This SDK call reads the subdomain of labeling portal. This is implemented as a CloudFormation custom resource.
SDK call to update user pool – This SDK call updates the user pool with a user invitation email that points to the labeling portal URL. This is implemented as a CloudFormation custom resource.
Filter for placeholder callback URL – Custom logic separates the placeholder URL from the app client’s callback URLs. This is implemented as a CloudFormation custom resource, backed by a custom AWS Lambda function.
SDK call to update the app client to remove the placeholder callback URL – This SDK call updates the app client with the correct callback URLs. This is implemented as a CloudFormation custom resource.
User creation and invitation emails – Amazon Cognito users are created and sent invitation emails with instructions to join the private workforce.

After this initial setup, a worker can join the private workforce and access the labeling. The authentication flow includes the email invitation, initial registration, authentication, and login to the labeling portal. The following diagram illustrates this workflow.

The detailed workflow steps are as follows:

A worker receives an email invitation that provides the user name, temporary password, and URL of the labeling portal.
When trying to reach the labeling portal, the worker is redirected to the Amazon Cognito user pool domain for authentication. Amazon Cognito domain endpoints are additionally protected by AWS WAF. The worker then sets a new password and registers with multi-factor authentication.
Authentication actions by the worker are logged and sent to CloudWatch.
The worker can log in and is redirected to the labeling portal.
In the labeling portal, the worker can access existing labeling jobs in SageMaker Ground Truth.

The solution uses a mix of AWS CDK constructs and CloudFormation custom resources to integrate the Amazon Cognito user pool and the SageMaker private workforce so workers can register and access the labeling portal. In the following sections, we show how to deploy the solution.

Prerequisites

You must have the following prerequisites:

An AWS account, already bootstrapped for the AWS CDK
AWS credentials with sufficient permissions to deploy the solution
The AWS CDK installed (version 2.178.1 or later)
Python (version 3.13 or later)
The AWS Command Line Interface (AWS CLI) installed
A mobile device with an authenticator app installed

Deploy the solution

To deploy the solution, complete the following steps. Make sure you have AWS credentials available in your environment with sufficient permissions to deploy the solution resources.

Clone the GitHub repository.
Follow the detailed instructions in the README file to deploy the stack using the AWS CDK and AWS CLI.
Open the AWS CloudFormation console and choose the Workforce stack for more information on the ongoing deployment and the created resources.

Test the solution

If you invited yourself from the AWS CDK CLI to join the private workforce, follow the instructions in the email that you received to register and access the labeling portal. Otherwise, complete the following steps to invite yourself and others to join the private workforce. For more information, see Creating a new user in the AWS Management Console.

On the Amazon Cognito console, choose User pools in the navigation pane.
Choose the existing user pool, MyWorkforceUserPool.
Choose Users, then choose Create a user.
Choose Email as the alias attribute to sign in.
Choose Send an email invitation as the invitation message.
For User name, enter a name for the new user. Make sure not to use the email address.
For Email address, enter the email address of the worker to be invited.
For simplicity, choose Generate a password for the user.
Choose Create.

After you receive the invitation email, follow the instructions to set a new password and register with an authenticator application. Then you can log in and see a page listing your labeling jobs.

Best practices and considerations

When setting up a private workforce, consider the best practices for Amazon Cognito and the AWS CDK, as well as additional customizations:

Customized domain – Provide your own prefix for the Amazon Cognito subdomain when deploying the solution. This way, you can use a more recognizable domain name for the labeling application, rather than a randomly generated one. For even greater customization, integrate the user pool with a custom domain that you own. This gives you full control over the URL used for the login and aligns it with the rest your organization’s applications.
Enhance security controls – Depending on your organization’s security and compliance requirements, you can further adapt the Amazon Cognito resources, for instance, by integrating with external identity providers and following other security best practices.
Implement VPC configuration – You can implement additional security controls, such as adding a virtual private cloud (VPC) configuration to the private workforce. This helps you enhance the overall security posture of your solution, providing an additional layer of network-level security and isolation.
Restrict the source IPs – When creating the SageMaker private workforce, you can specify a list of IP addresses ranges (CIDR) from which workers can log in.
AWS WAF customization – Bring your own existing AWS WAF or configure one to your organization’s needs by setting up custom rules, IP filtering, rate-based rules, and web access control lists (ACLs) to protect your application.
Integrate with CI/CD – Incorporate the IaC in a continuous integration and continuous delivery (CI/CD) pipeline to standardize deployment, track changes, and further improve resource tracking and observability also across multiple environments (for instance, development, staging, production).
Extend the solution – Depending on your specific use case, you might want to extend the solution to include the creation and management of work teams and labeling jobs or flows. This can help integrate the private workforce setup more seamlessly with your existing ML workflows and data labeling processes.
Integrate with additional AWS services – To suit your specific requirements, you can further integrate the private workforce and user pool with other relevant AWS services, such as CloudWatch for logging, monitoring, and alarms, and Amazon Simple Notification Service (Amazon SNS) for notifications to enhance the capabilities of your data labeling solution.

Clean up

To clean up your resources, open the AWS CloudFormation console and delete the Workforce stack. Alternatively, if you deployed using the AWS CDK CLI, you can run cdk destroy from the same terminal where you ran cdk deploy and use the same AWS CDK CLI arguments as during deployment.

Conclusion

This solution demonstrates how to programmatically create a private workforce on SageMaker Ground Truth, paired with a dedicated and fully configured Amazon Cognito user pool. By using the AWS CDK and AWS CloudFormation, this solution brings the benefits of IaC to the setup of your ML data labeling private workforce.

To further customize this solution to meet your organization’s standards, discover how to accelerate your journey on the cloud with the help of AWS Professional Services.

We encourage you to learn more from the developer guides on data labeling on SageMaker and Amazon Cognito user pools. Refer to the following blog posts for more examples of labeling data using SageMaker Ground Truth:

About the author

Dr. Giorgio Pessot is a Machine Learning Engineer at Amazon Web Services Professional Services. With a background in computational physics, he specializes in architecting enterprise-grade AI systems at the confluence of mathematical theory, DevOps, and cloud technologies, where technology and organizational processes converge to achieve business objectives. When he’s not whipping up cloud solutions, you’ll find Giorgio engineering culinary creations in his kitchen.
